TriMotion Gate - one gate,numerous possibilities
Absolute flexibility meets maximum stability
Customer: Public institution
Location: Saudi Arabia
Gate system: Swing gate
Year: 2024
Planing time: 1 year

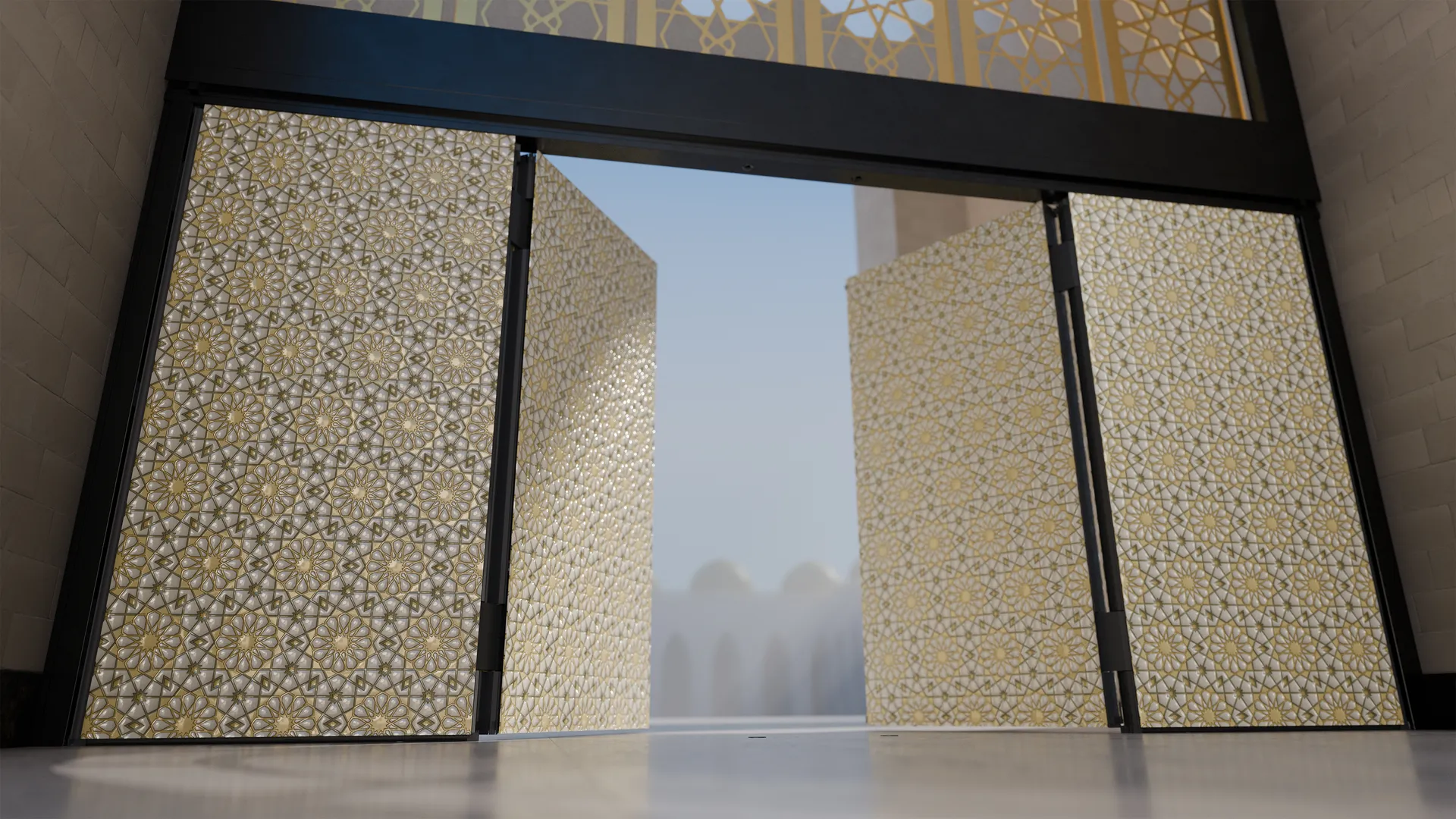

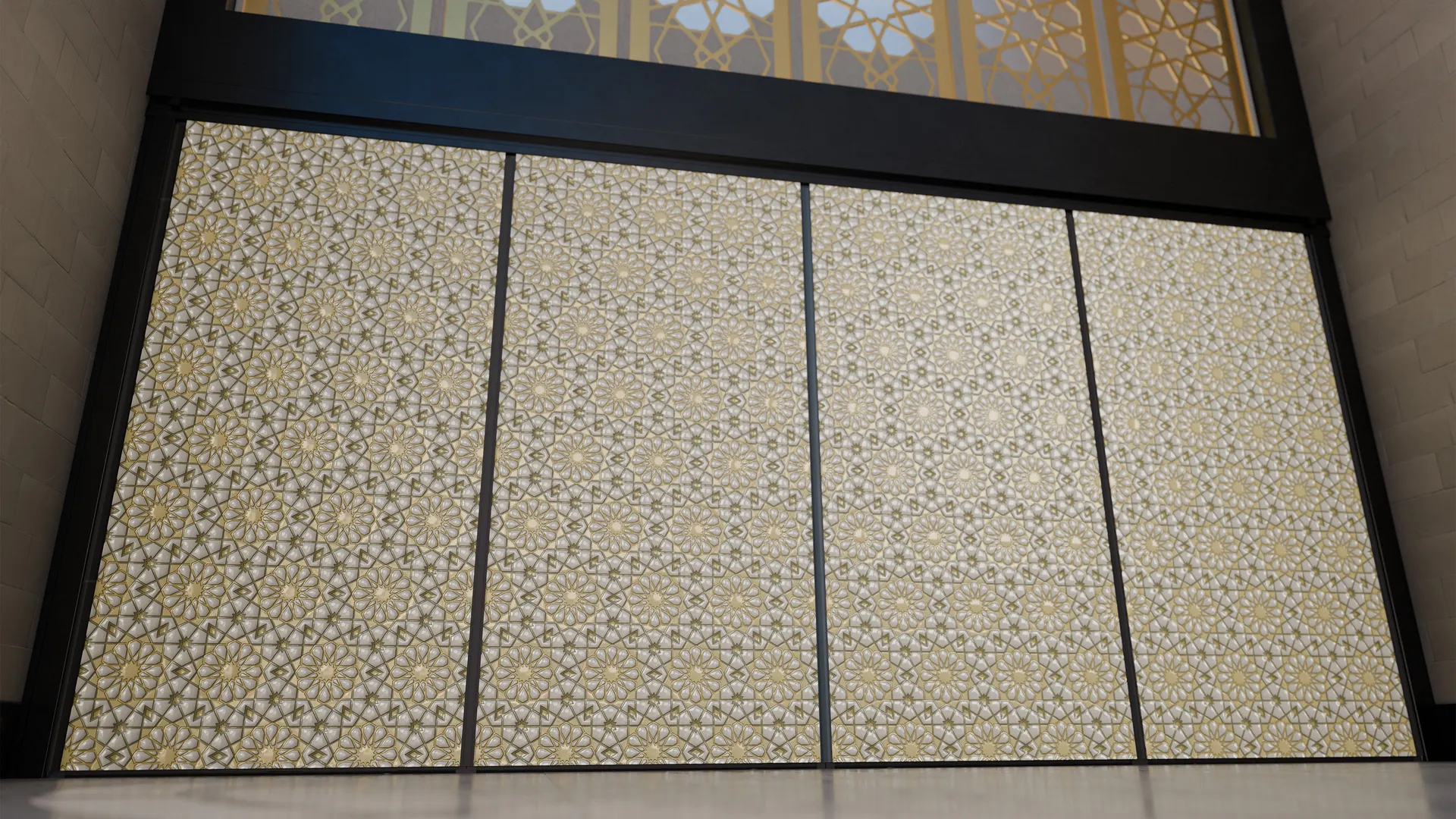

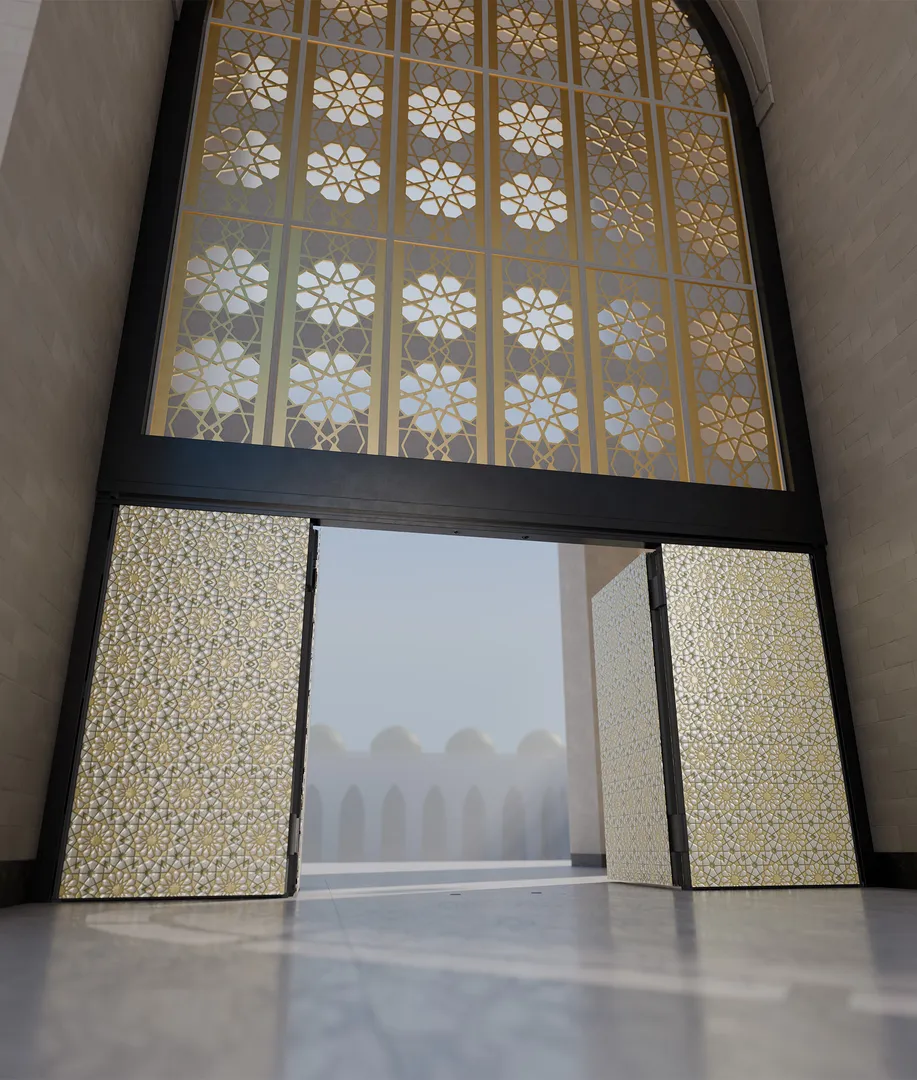

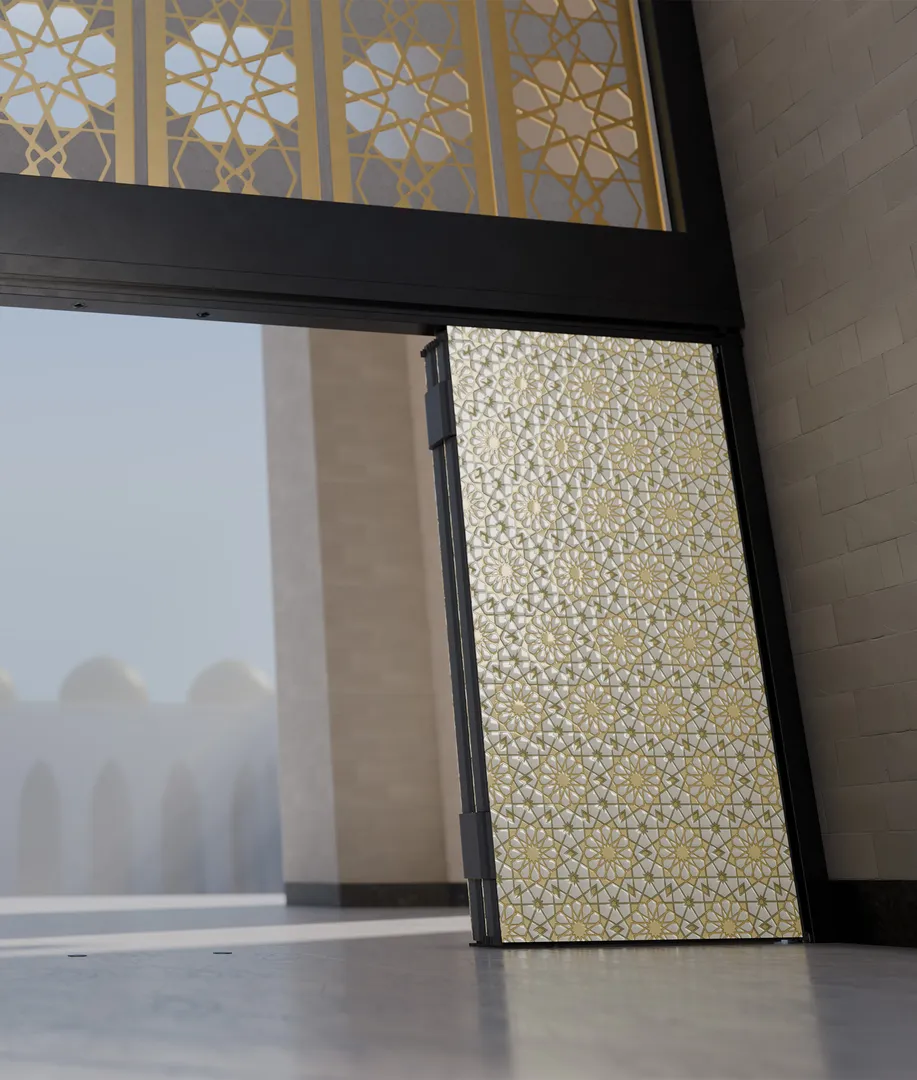

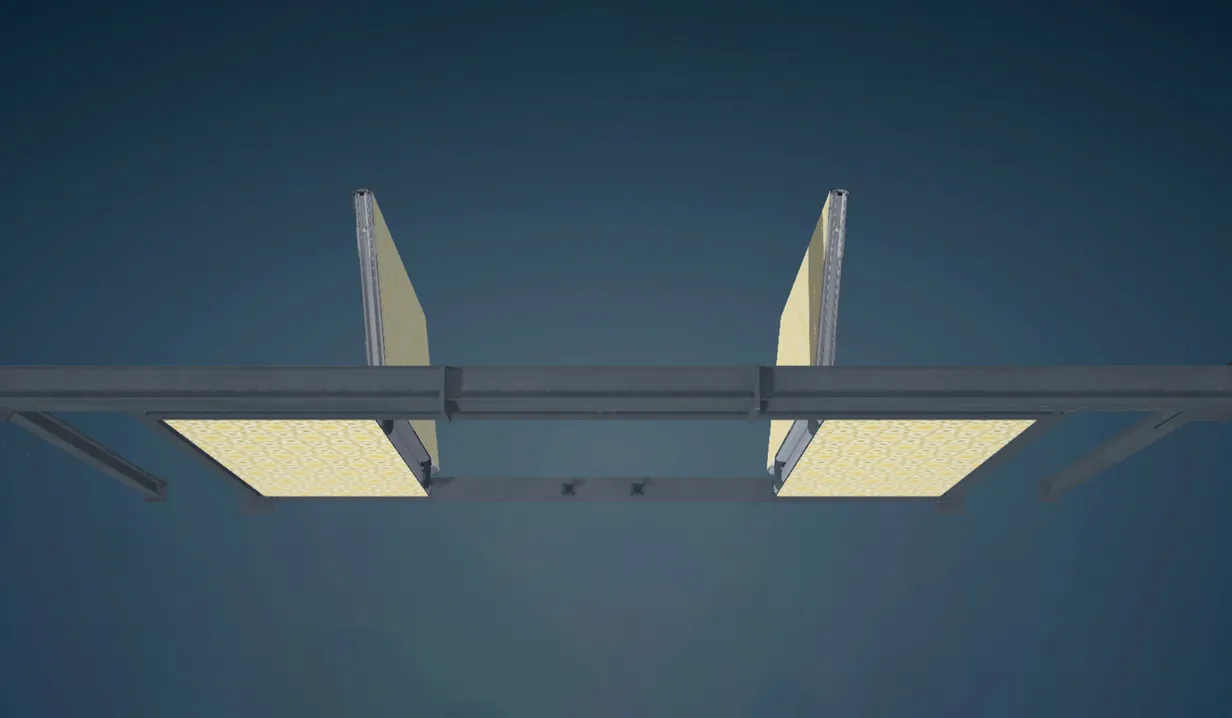

Perfectly adaptable to different situations, the gate can be stopped at multiple positions: First, it opens 90 degrees - ideal for visitor flows; then the opening expands to 180 degrees - the gate folds completely; in the third step, the wings rotate another 90 degrees - now the full passage width is available. Integrated locking mechanisms ensure maximum stability even under the highest wind loads. An integrated pressure plate extends the seals seamlessly along the sides, top, bottom, and between the panels - providing absolute protection. High-grade stainless steel prevents corrosion.
Project highlights
2
tonnes
per panel. Dimensions: 4,000 mm × 2,500 mm
3
positions
For flexible door operation. 90°, 180°, and an additional 90°.
2
motors
per panel - for reliable and precise movement.
Experience our projects in detail
In the 3D world of esto, you can view our completed projects including information on how they work, details on the respective system and the opportunity to see the doors in motion. It’s well worth a look!
Contact us to gain access to the 3D World.
